CAMO WEDGEMETAL™ Clips

Description

CAMO WEDGEMETAL Hidden Deck Fasteners

CAMO WEDGEMETAL Hidden Deck Fasteners are specifically designed for installing grooved composite, PVC, and wood decking over metal framing systems.

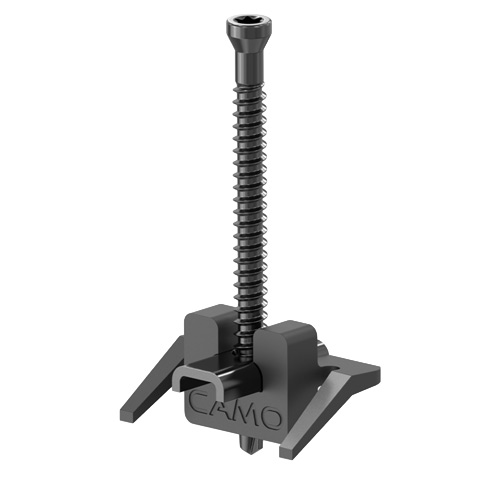

Featuring self-drilling stainless steel screws and pre-assembled clips, WEDGEMETAL provides a fast, secure installation without visible screws on the deck surface.

Key Features

• Designed for Metal Framing: Compatible with 14–18 gauge steel joists, including Fortress Evolution framing systems.
• Hidden Fastening System: Creates a clean deck surface without visible screws.
• Self-Drilling Screws: 410 stainless steel drill-point screws penetrate metal framing without pre-drilling.
• Universal Decking Compatibility: Works with leading grooved composite, PVC, and wood decking products.
• Fast Installation: Pre-assembled, one-pass clips stay positioned in the deck board grooves until fastening.
• Consistent Board Spacing: Integrated spacers maintain a uniform 3/16” (4.7 mm) gap between boards.
• Versatile Installation: Suitable for straight, diagonal, and herringbone decking patterns.

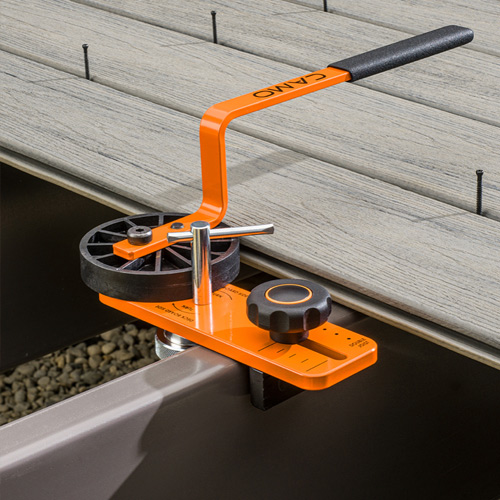

• CAMO Tool Compatibility: Install using the included NEVER-MISS Guide or CAMO ClipDRIVE and DRIVE tools.

Decking Compatibility

CAMO WEDGEMETAL Clips are designed for leading grooved decking brands, including:

• Trex
• Fiberon
• TimberTech
• AZEK
• Deckorators

Compatibility depends on the specific deck board profile.

Product Specifications

Specification	Details
Product	CAMO WEDGEMETAL
Fastener Type	Hidden deck clip
Framing Compatibility	14–18 gauge metal joists
Decking Compatibility	Grooved composite, PVC, and wood
Screw Material	410 stainless steel
Screw Type	Self-drilling
Board Spacing	3/16” (4.7 mm)
Driver Bit	T-15
Installation Tools	NEVER-MISS Guide, ClipDRIVE, DRIVE
Package Options	90-count and 450-count

Installation Information

CAMO WEDGEMETAL Clips are designed for fast, one-pass installation on metal framing.

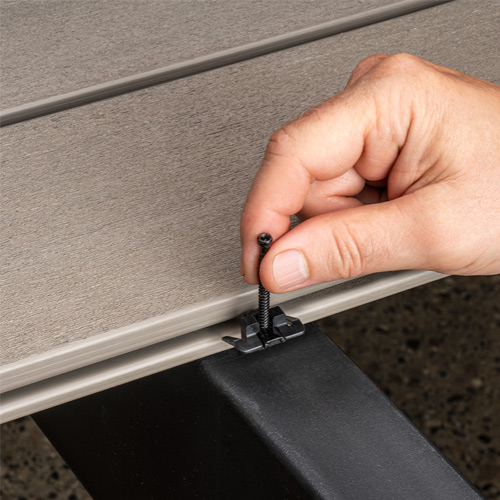

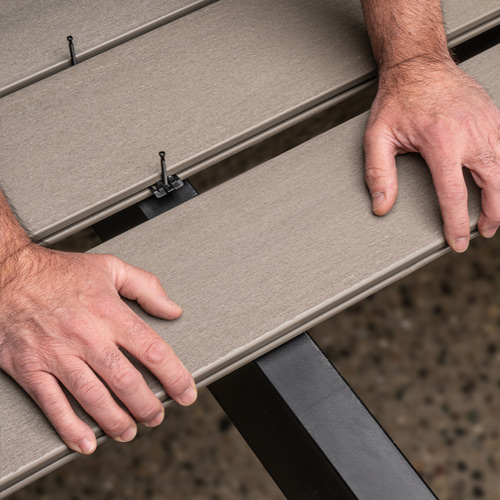

Simply position the clip in the deck board groove, place the next board, and fasten directly into the metal joist.

The self-drilling screw eliminates the need for pre-drilling, while the integrated spacer maintains consistent board spacing.

Important: WEDGEMETAL Clips are designed for metal framing. For wood joists, use CAMO WEDGECLIP Hidden Deck Fasteners. Do not use impact drivers when installing CAMO Clips.
